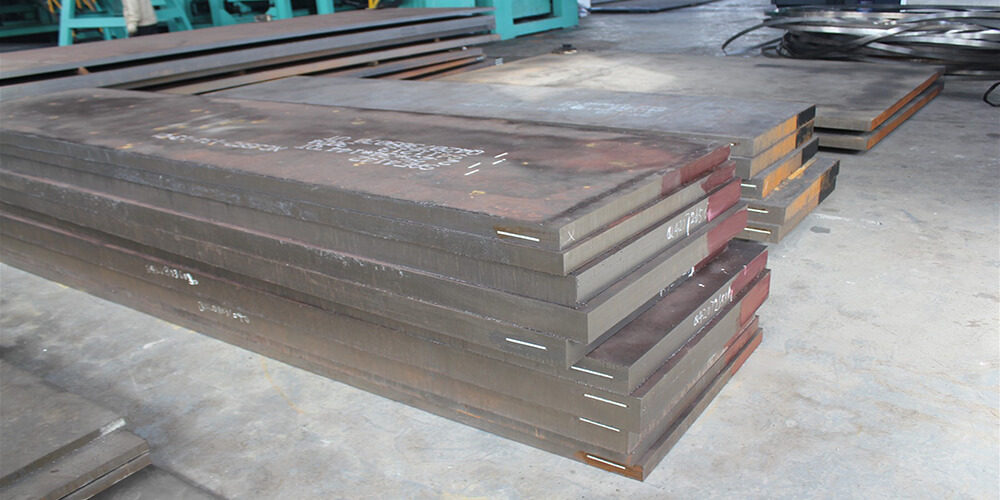

S690ql steel plate Grade and Specification
Standard ASTM A514/A514M-13
Grade 130 KSI ,140 KSI,A514 ,A710 ,TMCP 100 KSI ,RQT 701 ,S690QL1 ,S690QL ,S690Q ,S890QL1 ,S890QL ,S890Q ,S960QL , WELTEN 780E
Size Thickness:12-60mm
Width: 1500-3500mm
Length: 3000-18000mm
Delivery State Quenched and Tempered
Packing Standard seaworthy package
Export To: Saudi arabia, Kuwait, Qatar, Oman, Yemen, UAE, Iran, Turkey, Kazakhstan, Greece, Singapore, Thailand, Indonesia, Vietnam, South Africa,South America,Brazil, India, Australia, Egypt.
Chemical Properties Of S690ql steel plate
C
Si
Mn
Ni
P
S
Cr
Mo
V
N
Nb
Ti
Cu
Zr
B
CEV
max 0.2
max 0.8
max 1.7
max 2
max 0.02
max 0.01
max 1.5
max 0.7
max 0.12
max 0.015
max 0.06
max 0.05
max 0.5
max 0.15
max 0.005
max 0.83
Mechanical Properties Of S690ql steel plate
Designation
Mechanical Properties (ambient temperature)
Steel Name
Steel Number
Min. Yield Strength Reh MPa
Tensile Strength Rm MPa
Min. % elonga-
tion after fracture
Nominal thickness (mm)
Nominal thickness (mm)
≥3 ≤50
≥50 ≤100
≥100 ≤150
≥3 ≤50
≥50 ≤100
≥100 ≤150
S690QL
1.8931
690
650
630
770/940
760/930
710/900
14
