A progressive cavity pump (PCP) is a type of positive displacement pump that uses a unique design to move fluids efficiently. It is often used in industries like oil and gas, water treatment, food processing, and chemicals. Here’s an explanation of how it works and its key features:
Working Principle:

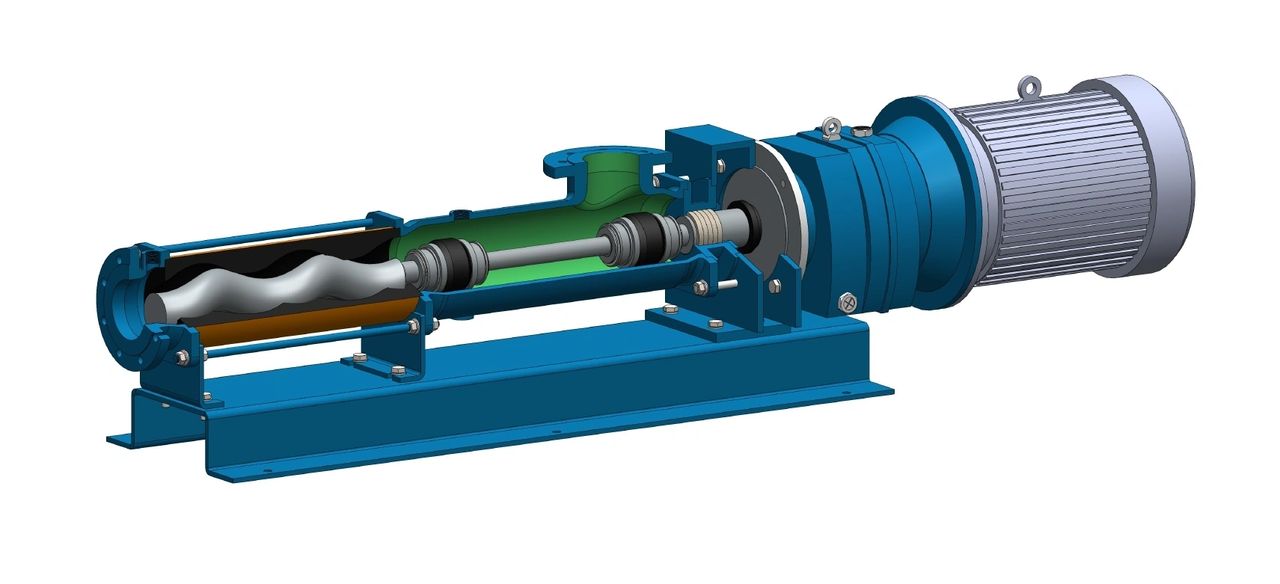

The progressive cavity pump consists of two main components:
Rotor: A helical screw-like component that rotates.
Stator: A flexible, rubber-like component with a series of cavities that fit around the rotor.
The rotor and stator work together to create a series of sealed cavities. As the rotor turns inside the stator, the cavities progressively move along the length of the pump. This results in a continuous and smooth flow of fluid. The design allows the pump to handle both low and high viscosity fluids, including slurries and viscous liquids.
Key Features of PCPs:
Positive Displacement: Unlike centrifugal pumps, progressive cavity pumps move a fixed volume of fluid with each rotation, making them ideal for handling precise volumes and providing a consistent flow rate.
Smooth, Pulsation-Free Flow: The design reduces flow pulsations, leading to more stable operation compared to other pump types.
Versatility: PCPs can pump a wide variety of fluids, including those with suspended solids, high viscosity, and abrasives, like in the oil and gas industry.
Self-Priming: These pumps can start without the need for external priming, making them efficient in applications where liquid must be moved without the initial presence of fluid in the pump.
Tolerances: PCPs are particularly good at handling fluids with changing viscosities, solids, and non-Newtonian fluids.
Applications:
Oil and Gas: Transporting crude oil, water, chemicals, or mud.
Water Treatment: Pumping sludge, thick liquids, and slurry.
Food and Beverage: Moving thick or viscous liquids like syrups or creams.
Chemical Processing: Handling chemicals and other aggressive or abrasive fluids.
Advantages:
High suction capabilities.
Handles high-viscosity fluids and mixtures with solids.
Gentle handling of the fluid, which reduces shear and preserves the integrity of sensitive liquids.
Disadvantages:
The rotor and stator can wear over time, especially if abrasive materials are pumped.
Requires regular maintenance and replacement of the stator to maintain efficiency.
Overall, progressive cavity pumps are robust and versatile pumps widely used in industries where steady, reliable fluid handling is essential.
